FHIR Search Performance

TL;DR

Under ideal conditions, Blaze can execute a FHIR Search query for a single code at a rate of 10 million resources per second and export the matching resources at 280,000 resources per second. This performance is independent of the total number of resources held in the database.

Systems

The following systems, with increasing resources, were used for the performance evaluation:

System	Provider	CPU	Cores	RAM	SSD
LEA25	on-prem	EPYC 7543P	4	32 GiB	3.2 TB Intel P5600 over vSAN
LEA36	on-prem	EPYC 7543P	8	64 GiB	3.2 TB Intel P5600 over vSAN
LEA47	on-prem	EPYC 7543P	16	128 GiB	3.2 TB Intel P5600 over vSAN
LEA58	on-prem	EPYC 7543P	32	256 GiB	3.2 TB Intel P5600 over vSAN
LEA79	on-prem	EPYC 9555	128	512 GiB	12.8 TB Huawei OceanDisk 300P
A5N46	on-prem	Ryzen 9900X	24	96 GiB	4 TB Samsung 990 Pro

All systems were configured according to the Production Configuration Guide.

On all systems, the heap memory and the block cache were each configured to use 1/4 of the total available RAM. Consequently, the Blaze process itself uses about half of the available system memory, leaving the remainder for the file system cache.

On A5N46, the measurements were done with direct reads in the resource database (RESOURCE_DB_DIRECT_READS=true and DB_RESOURCE_STORE_KV_THREADS=64), because its RAM is too small to keep both the index and the resource contents in the page cache. Without direct reads, downloads of large result sets push the index out of the page cache, so that their duration varies between measurements. In addition, the heap was fixed with -Xms24g, so that the memory left for the page cache doesn't change while the JVM grows and shrinks its heap.

Datasets

The following datasets were used:

Dataset	History	# Pat. ¹	# Res. ²	# Obs. ³	Size on SSD
100k	10 years	100 k	104 M	59 M	110 GiB
1M	10 years	1 M	1044 M	593 M	1045 GiB

¹ Number of Patients, ² Total Number of Resources, ³ Number of Observations

The creation of these datasets is described in the Synthea section. The disk size was measured after a full manual compaction of the database. The actual disk size can be up to 50% higher, depending on the state of the background compaction process.

Simple Code Search

This section evaluates the performance of FHIR Search for selecting Observation resources with a specific code.

Script

The script simple-code-search.sh is used.

Counting

System	Dataset	Code	# Hits	Time (s)	StdDev	Res/s ¹
LEA36	100k	8310-5	115 k	0.06	0.003	1.92 M
LEA36	100k	55758-7	1.0 M	0.49	0.005	2.04 M
LEA36	100k	72514-3	2.7 M	1.28	0.022	2.11 M
LEA47	100k	8310-5	115 k	0.06	0.001	1.92 M
LEA47	100k	55758-7	1.0 M	0.50	0.010	2.00 M
LEA47	100k	72514-3	2.7 M	1.34	0.026	2.01 M
LEA58	100k	8310-5	115 k	0.07	0.002	1.64 M
LEA58	100k	55758-7	1.0 M	0.54	0.020	1.85 M
LEA58	100k	72514-3	2.7 M	1.43	0.045	1.89 M
LEA47	1M	8310-5	1.2 M	0.30	0.017	3.8 M
LEA47	1M	55758-7	10.1 M	2.65	0.025	3.8 M
LEA47	1M	72514-3	27.3 M	8.08	0.034	3.4 M
LEA58	1M	8310-5	1.2 M	0.39	0.009	3.0 M
LEA58	1M	55758-7	10.1 M	2.84	0.026	3.6 M
LEA58	1M	72514-3	27.3 M	7.52	0.138	3.6 M
LEA79	1M	8310-5	1.2 M	0.16	0.011	7.2 M
LEA79	1M	55758-7	10.1 M	1.19	0.025	8.5 M
LEA79	1M	72514-3	27.3 M	3.21	0.156	8.5 M
A5N46	1M	8310-5	1.2 M	0.12	0.002	9.9 M
A5N46	1M	55758-7	10.1 M	1.07	0.064	9.4 M
A5N46	1M	72514-3	27.3 M	3.79	0.281	7.2 M

¹ resources per second

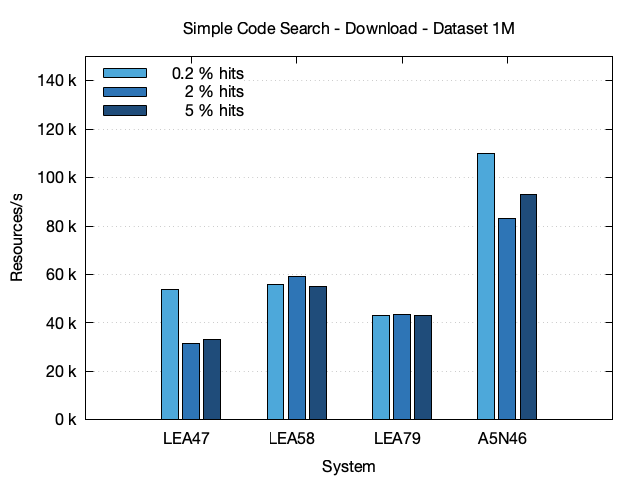

Downloading Resources

System	Dataset	Code	# Hits	Time (s)	StdDev	Res/s ¹
LEA36	100k	8310-5	115 k	1.90	0.016	60.53 k
LEA36	100k	55758-7	1.0 M	15.45	0.121	64.72 k
LEA36	100k	72514-3	2.7 M	41.09	0.530	65.71 k
LEA47	100k	8310-5	115 k	2.00	0.021	57.50 k
LEA47	100k	55758-7	1.0 M	15.99	0.147	62.54 k
LEA47	100k	72514-3	2.7 M	43.48	0.128	62.10 k
LEA58	100k	8310-5	115 k	1.96	0.039	58.67 k
LEA58	100k	55758-7	1.0 M	16.61	0.161	60.20 k
LEA58	100k	72514-3	2.7 M	43.84	0.124	61.59 k
LEA47	1M	8310-5	1.2 M	8.87	0.179	130.6 k
LEA47	1M	55758-7	10.1 M	111.26	4.385	91.1 k
LEA47	1M	72514-3	27.3 M	435.80	12.001	62.7 k
LEA58	1M	8310-5	1.2 M	20.70	0.320	56.0 k
LEA58	1M	55758-7	10.1 M	171.60	4.241	59.1 k
LEA58	1M	72514-3	27.3 M	497.29	26.969	55.0 k
LEA79	1M	8310-5	1.2 M	4.46	0.056	259.7 k
LEA79	1M	55758-7	10.1 M	35.91	0.039	282.4 k
LEA79	1M	72514-3	27.3 M	97.61	0.368	280.1 k
A5N46	1M	8310-5	1.2 M	6.19	0.108	187.4 k
A5N46	1M	55758-7	10.1 M	51.06	0.081	198.6 k
A5N46	1M	72514-3	27.3 M	137.76	0.166	198.5 k

¹ resources per second

Downloading Resources with Subsetting

If only a subset of a resource's information is needed, the _elements search parameter can be used to retrieve only specific properties. In this case, _elements=subject was used.

System	Dataset	Code	# Hits	Time (s)	StdDev	Res/s ¹
LEA36	100k	8310-5	115 k	1.26	0.009	91.27 k
LEA36	100k	55758-7	1.0 M	9.70	0.070	103.09 k
LEA36	100k	72514-3	2.7 M	25.82	0.440	104.57 k
LEA47	100k	8310-5	115 k	1.34	0.009	85.82 k
LEA47	100k	55758-7	1.0 M	9.95	0.065	100.50 k
LEA47	100k	72514-3	2.7 M	26.76	0.284	100.90 k
LEA58	100k	8310-5	115 k	1.28	0.017	89.84 k
LEA58	100k	55758-7	1.0 M	10.55	0.209	94.79 k
LEA58	100k	72514-3	2.7 M	27.15	0.749	99.45 k
LEA47	1M	8310-5	1.2 M	6.82	0.020	170.0 k
LEA47	1M	55758-7	10.1 M	104.34	7.340	97.2 k
LEA47	1M	72514-3	27.3 M	421.83	1.422	64.8 k
LEA58	1M	8310-5	1.2 M	15.42	0.208	75.1 k
LEA58	1M	55758-7	10.1 M	124.03	1.024	81.8 k
LEA58	1M	72514-3	27.3 M	343.16	1.412	79.7 k
LEA79	1M	8310-5	1.2 M	3.12	0.043	372.0 k
LEA79	1M	55758-7	10.1 M	25.13	0.126	403.5 k
LEA79	1M	72514-3	27.3 M	72.35	0.314	377.9 k
A5N46	1M	8310-5	1.2 M	5.91	0.064	196.2 k
A5N46	1M	55758-7	10.1 M	50.78	0.029	199.7 k
A5N46	1M	72514-3	27.3 M	137.47	0.153	198.9 k

¹ resources per second

Multiple Codes Search

This section evaluates the performance of FHIR Search for selecting Observation resources with multiple codes.

The following codes were used:

• 10 LOINC codes from observation-codes-10.txt
• 100 LOINC codes from observation-codes-100.txt

Script

The script multiple-codes-search.sh is used.

Counting

System	Dataset	Codes	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	10	29.1 M	12.69	0.147	2.3 M
LEA47	1M	100	36.3 M	19.32	0.067	1.9 M
LEA79	1M	10	29.1 M	4.87	0.215	6.0 M
LEA79	1M	100	36.3 M	7.78	0.361	4.7 M
A5N46	1M	10	29.1 M	4.58	0.046	6.4 M
A5N46	1M	100	36.3 M	7.61	0.157	4.8 M

¹ resources per second

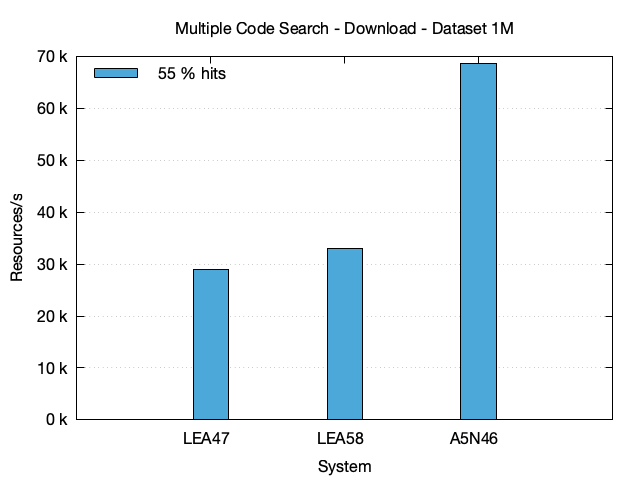

Downloading Resources

System	Dataset	Codes	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	10	29.1 M	680.86	9.238	42.7 k
LEA47	1M	100	36.3 M	1663.36	1.855	21.8 k
LEA79	1M	10	29.1 M	110.86	0.440	262.2 k
LEA79	1M	100	36.3 M	269.83	0.284	134.6 k
A5N46	1M	10	29.1 M	187.18	0.314	155.3 k
A5N46	1M	100	36.3 M	286.61	0.507	126.8 k

¹ resources per second

Multiple Codes Search – ValueSet

This section evaluates the performance of FHIR Search for selecting Observation resources with multiple codes using the in-modifier with a VCL value set URL.

The following codes were used:

• 10 LOINC codes from observation-codes-10.txt
• 100 LOINC codes from observation-codes-100.txt

Script

The script multiple-codes-search-vs.sh is used.

Counting

System	Dataset	Codes	# Hits	Time (s)	StdDev	Res/s ¹
LEA79	1M	10	29.1 M	5.05	0.188	5.8 M
LEA79	1M	100	36.3 M	7.88	0.329	4.6 M
A5N46	1M	10	29.1 M	7.68	0.102	3.8 M
A5N46	1M	100	36.3 M	11.07	0.206	3.3 M

¹ resources per second

Downloading Resources

System	Dataset	Codes	# Hits	Time (s)	StdDev	Res/s ¹
LEA79	1M	10	29.1 M	111.11	0.243	261.6 k
LEA79	1M	100	36.3 M	268.04	0.123	135.5 k
A5N46	1M	10	29.1 M	181.58	0.086	160.1 k
A5N46	1M	100	36.3 M	289.41	0.964	125.5 k

¹ resources per second

Multiple Search Parameter Search

This section evaluates the performance of FHIR search queries with multiple search parameters and multiple codes.

Two sets of codes were used:

Category	Name	Codes
laboratory	top-5	49765-1, 20565-8, 2069-3, 38483-4, 2339-0
vital-signs	low-5	2713-6, 8478-0, 8310-5, 77606-2, 9843-4

Script

The script observation-final-category-multiple-codes-search.sh is used.

Counting

System	Dataset	Category	Codes	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	laboratory	top-5	90.3 M	398.47	1.039	226.5 k
LEA47	1M	vital-signs	low-5	3.5 M	5.45	0.436	646.7 k
LEA58	1M	laboratory	top-5	90.3 M	352.50	8.995	256.1 k
LEA58	1M	vital-signs	low-5	3.5 M	1.43	0.018	2.5 M
LEA79	1M	laboratory	top-5	90.3 M	152.49	0.624	591.9 k
LEA79	1M	vital-signs	low-5	3.5 M	0.63	0.057	5.6 M
A5N46	1M	laboratory	top-5	90.3 M	135.08	0.311	668.3 k
A5N46	1M	vital-signs	low-5	3.5 M	2.13	0.047	1.7 M

¹ resources per second

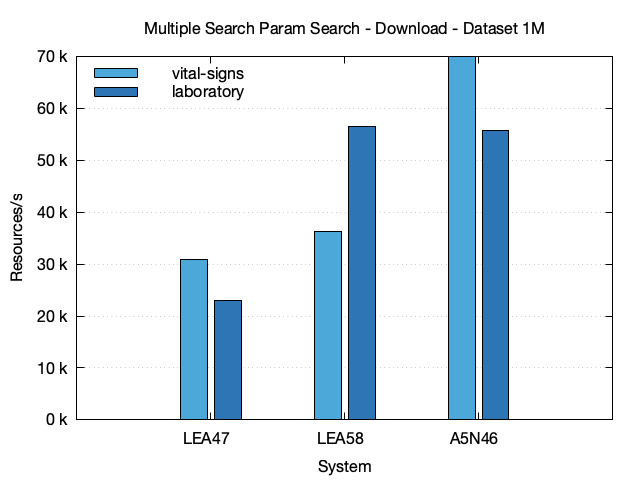

Downloading Resources

System	Dataset	Category	Codes	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	laboratory	top-5	90.3 M	2923.45	7.951	30.9 k
LEA47	1M	vital-signs	low-5	3.5 M	153.07	29.422	23.0 k
LEA58	1M	laboratory	top-5	90.3 M	2490.08	101.868	36.2 k
LEA58	1M	vital-signs	low-5	3.5 M	62.43	0.356	56.5 k
LEA79	1M	laboratory	top-5	90.3 M	665.32	0.229	135.7 k
LEA79	1M	vital-signs	low-5	3.5 M	27.56	0.216	127.9 k
A5N46	1M	laboratory	top-5	90.3 M	569.80	1.438	158.4 k
A5N46	1M	vital-signs	low-5	3.5 M	40.30	0.353	87.5 k

¹ resources per second

Downloading Resources with Subsetting

If only a subset of a resource's information is needed, the _elements search parameter can be used to retrieve only specific properties. In this case, _elements=subject was used.

System	Dataset	Category	Codes	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	laboratory	top-5	90.3 M	2625.21	24.973	34.4 k
LEA47	1M	vital-signs	low-5	3.5 M	118.72	0.099	29.7 k
LEA58	1M	laboratory	top-5	90.3 M	2200.60	232.968	41.0 k
LEA58	1M	vital-signs	low-5	3.5 M	54.94	5.827	64.2 k
LEA79	1M	laboratory	top-5	90.3 M	659.86	0.773	136.8 k
LEA79	1M	vital-signs	low-5	3.5 M	27.25	0.014	129.3 k
A5N46	1M	laboratory	top-5	90.3 M	564.21	3.638	160.0 k
A5N46	1M	vital-signs	low-5	3.5 M	38.11	0.071	92.5 k

¹ resources per second

Forward Chaining Search

This section evaluates the performance of FHIR search queries with one forward chaining search parameter.

Script

The script forward-chaining-search.sh is used.

Counting

System	Dataset	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	13 k	0.81	0.004	16.0 k
LEA79	1M	13 k	0.23	0.007	57.5 k
A5N46	1M	13 k	0.16	0.001	79.7 k

¹ resources per second

Downloading Resources

System	Dataset	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	13 k	8.15	0.029	1.6 k
LEA79	1M	13 k	2.18	0.008	6.0 k
A5N46	1M	13 k	1.64	0.005	8.0 k

¹ resources per second

Token and Forward Chaining Search

This section evaluates the performance of FHIR search queries with one badly discriminating token search parameter and one well discriminating forward chaining search parameter.

Script

The script token-forward-chaining-search.sh is used.

Counting

System	Dataset	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	32 k	0.30	0.010	105.2 k
LEA79	1M	32 k	0.11	0.001	291.7 k
A5N46	1M	32 k	0.09	0.002	359.2 k

¹ resources per second

Downloading Resources

System	Dataset	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	32 k	3.95	0.042	8.0 k
LEA79	1M	32 k	1.15	0.005	27.6 k
A5N46	1M	32 k	0.95	0.005	33.4 k

¹ resources per second

Code and Value Search

This section evaluates the performance of FHIR Search for selecting Observation resources with a specific code and value.

Script

The script code-value-search.sh is used.

Counting

System	Dataset	Code	Value	# Hits	Time (s)	StdDev	Res/s ¹
LEA79	1M	29463-7	26.8	1.6 M	4.10	0.121	381.0 k
LEA79	1M	29463-7	79.5	7.9 M	4.10	0.153	1.9 M
LEA79	1M	29463-7	183	15.9 M	4.23	0.239	3.8 M
A5N46	1M	29463-7	26.8	1.6 M	51.09	0.085	30.6 k
A5N46	1M	29463-7	79.5	7.9 M	51.20	0.453	153.4 k
A5N46	1M	29463-7	183	15.9 M	58.44	0.053	272.2 k

¹ resources per second

Downloading Resources

System	Dataset	Code	Value	# Hits	Time (s)	StdDev	Res/s ¹
LEA79	1M	29463-7	26.8	1.6 M	208.42	0.217	7.5 k
LEA79	1M	29463-7	79.5	7.9 M	235.37	1.231	33.4 k
LEA79	1M	29463-7	183	15.9 M	263.72	0.136	60.3 k
A5N46	1M	29463-7	26.8	1.6 M	647.99	0.565	2.4 k
A5N46	1M	29463-7	79.5	7.9 M	813.16	3.758	9.6 k
A5N46	1M	29463-7	183	15.9 M	974.11	10.472	16.3 k

¹ resources per second

Downloading Resources with Subsetting

If only a subset of a resource's information is needed, the _elements search parameter can be used to retrieve only specific properties. In this case, _elements=subject was used.

System	Dataset	Code	Value	# Hits	Time (s)	StdDev	Res/s ¹
LEA79	1M	29463-7	26.8	1.6 M	208.33	0.088	7.5 k
LEA79	1M	29463-7	79.5	7.9 M	234.29	0.312	33.5 k
LEA79	1M	29463-7	183	15.9 M	262.60	0.180	60.6 k
A5N46	1M	29463-7	26.8	1.6 M	647.67	0.611	2.4 k
A5N46	1M	29463-7	79.5	7.9 M	809.25	0.257	9.7 k
A5N46	1M	29463-7	183	15.9 M	963.35	0.187	16.5 k

¹ resources per second

Code and Date Search

This section evaluates the performance of FHIR Search for selecting Observation resources with a specific code and date.

Script

The script code-date-search.sh is used.

Counting

System	Dataset	Code	Date	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	8310-5	2013	50 k	0.42	0.006	119.1 k
LEA47	1M	8310-5	2019	85 k	0.42	0.008	200.9 k
LEA47	1M	8310-5	2020	273 k	0.45	0.001	601.3 k
LEA47	1M	55758-7	2013	549 k	18.38	2.954	29.9 k
LEA47	1M	55758-7	2019	1.0 M	16.52	0.112	63.2 k
LEA47	1M	55758-7	2020	1.1 M	16.74	0.238	63.9 k
LEA47	1M	72514-3	2013	1.4 M	220.21	38.049	6.6 k
LEA47	1M	72514-3	2019	2.8 M	278.23	10.056	10.2 k
LEA47	1M	72514-3	2020	2.9 M	274.85	20.144	10.7 k
LEA58	1M	8310-5	2013	50 k	0.41	0.009	121.7 k
LEA58	1M	8310-5	2019	85 k	0.41	0.008	208.2 k
LEA58	1M	8310-5	2020	273 k	0.41	0.003	662.0 k
LEA58	1M	55758-7	2013	549 k	9.45	0.038	58.0 k
LEA58	1M	55758-7	2019	1.0 M	9.68	0.025	107.8 k
LEA58	1M	55758-7	2020	1.1 M	9.57	0.020	111.8 k
LEA58	1M	72514-3	2013	1.4 M	16.96	0.180	85.1 k
LEA58	1M	72514-3	2019	2.8 M	17.01	0.076	167.1 k
LEA58	1M	72514-3	2020	2.9 M	17.29	0.085	170.2 k
LEA79	1M	8310-5	2013	50 k	0.18	0.003	273.9 k
LEA79	1M	8310-5	2019	85 k	0.19	0.011	454.3 k
LEA79	1M	8310-5	2020	273 k	0.18	0.006	1.5 M
LEA79	1M	55758-7	2013	549 k	2.94	0.025	186.7 k
LEA79	1M	55758-7	2019	1.0 M	2.83	0.038	368.3 k
LEA79	1M	55758-7	2020	1.1 M	2.89	0.063	369.9 k
LEA79	1M	72514-3	2013	1.4 M	5.60	0.071	257.8 k
LEA79	1M	72514-3	2019	2.8 M	5.77	0.147	492.7 k
LEA79	1M	72514-3	2020	2.9 M	6.06	0.216	485.4 k
A5N46	1M	8310-5	2013	50 k	0.27	0.010	187.5 k
A5N46	1M	8310-5	2019	85 k	0.26	0.004	326.2 k
A5N46	1M	8310-5	2020	273 k	0.28	0.010	973.4 k
A5N46	1M	55758-7	2013	549 k	41.09	0.009	13.4 k
A5N46	1M	55758-7	2019	1.0 M	42.03	0.021	24.8 k
A5N46	1M	55758-7	2020	1.1 M	42.01	0.048	25.5 k
A5N46	1M	72514-3	2013	1.4 M	54.66	0.722	26.4 k
A5N46	1M	72514-3	2019	2.8 M	52.72	0.222	53.9 k
A5N46	1M	72514-3	2020	2.9 M	51.79	0.063	56.8 k

¹ resources per second

Downloading Resources

System	Dataset	Code	Date	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	8310-5	2013	50 k	5.93	0.016	8.5 k
LEA47	1M	8310-5	2019	85 k	6.60	0.025	12.9 k
LEA47	1M	8310-5	2020	273 k	9.89	0.062	27.6 k
LEA47	1M	55758-7	2013	549 k	253.20	1.566	2.2 k
LEA47	1M	55758-7	2019	1.0 M	470.48	266.452	2.2 k
LEA47	1M	55758-7	2020	1.1 M	274.58	10.132	3.9 k
LEA47	1M	72514-3	2013	1.4 M	3107.67	498.287	464
LEA47	1M	72514-3	2019	2.8 M	4180.95	150.134	680
LEA47	1M	72514-3	2020	2.9 M	4316.09	9.551	682
LEA58	1M	8310-5	2013	50 k	6.06	0.025	8.3 k
LEA58	1M	8310-5	2019	85 k	6.75	0.057	12.6 k
LEA58	1M	8310-5	2020	273 k	10.03	0.065	27.2 k
LEA58	1M	55758-7	2013	549 k	251.57	0.633	2.2 k
LEA58	1M	55758-7	2019	1.0 M	264.94	1.160	3.9 k
LEA58	1M	55758-7	2020	1.1 M	265.40	2.129	4.0 k
LEA58	1M	72514-3	2013	1.4 M	468.79	3.568	3.1 k
LEA58	1M	72514-3	2019	2.8 M	505.10	8.743	5.6 k
LEA58	1M	72514-3	2020	2.9 M	504.28	4.828	5.8 k
LEA79	1M	8310-5	2013	50 k	3.69	0.018	13.7 k
LEA79	1M	8310-5	2019	85 k	3.79	0.023	22.5 k
LEA79	1M	8310-5	2020	273 k	4.58	0.022	59.7 k
LEA79	1M	55758-7	2013	549 k	138.07	0.012	4.0 k
LEA79	1M	55758-7	2019	1.0 M	140.46	0.182	7.4 k
LEA79	1M	55758-7	2020	1.1 M	140.37	0.047	7.6 k
LEA79	1M	72514-3	2013	1.4 M	260.43	0.030	5.5 k
LEA79	1M	72514-3	2019	2.8 M	269.10	0.053	10.6 k
LEA79	1M	72514-3	2020	2.9 M	269.91	0.080	10.9 k
A5N46	1M	8310-5	2013	50 k	2.97	0.012	17.0 k
A5N46	1M	8310-5	2019	85 k	3.16	0.009	26.9 k
A5N46	1M	8310-5	2020	273 k	4.08	0.005	67.0 k
A5N46	1M	55758-7	2013	549 k	371.68	0.400	1.5 k
A5N46	1M	55758-7	2019	1.0 M	395.93	0.145	2.6 k
A5N46	1M	55758-7	2020	1.1 M	397.53	0.379	2.7 k
A5N46	1M	72514-3	2013	1.4 M	665.47	5.894	2.2 k
A5N46	1M	72514-3	2019	2.8 M	759.56	0.604	3.7 k
A5N46	1M	72514-3	2020	2.9 M	766.62	3.889	3.8 k

¹ resources per second

Category and Date Search

This section evaluates the performance of FHIR Search for selecting Observation resources with a specific category and date.

Script

The script category-date-search.sh is used.

Counting

System	Dataset	Code	Date	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	laboratory	2013	19.6 M	194.72	1.585	100.8 k
LEA47	1M	laboratory	2019	38.4 M	204.33	0.532	187.9 k
LEA47	1M	laboratory	2020	44.9 M	205.06	0.565	219.0 k
LEA47	1M	vital-signs	2013	7.6 M	326.83	6.978	23.2 k
LEA47	1M	vital-signs	2019	14.3 M	338.42	0.157	42.3 k
LEA47	1M	vital-signs	2020	15.8 M	334.29	4.415	47.2 k
LEA58	1M	laboratory	2013	19.6 M	118.38	0.677	165.8 k
LEA58	1M	laboratory	2019	38.4 M	117.87	0.465	325.8 k
LEA58	1M	laboratory	2020	44.9 M	140.11	19.633	320.5 k
LEA58	1M	vital-signs	2013	7.6 M	43.99	0.135	172.8 k
LEA58	1M	vital-signs	2019	14.3 M	45.09	0.629	317.8 k
LEA58	1M	vital-signs	2020	15.8 M	44.77	0.547	352.8 k
LEA79	1M	laboratory	2013	19.6 M	50.69	0.287	387.3 k
LEA79	1M	laboratory	2019	38.4 M	51.09	1.022	751.6 k
LEA79	1M	laboratory	2020	44.9 M	52.29	1.628	858.7 k
LEA79	1M	vital-signs	2013	7.6 M	19.45	0.408	390.9 k
LEA79	1M	vital-signs	2019	14.3 M	19.08	0.300	751.1 k
LEA79	1M	vital-signs	2020	15.8 M	19.07	0.131	828.4 k
A5N46	1M	laboratory	2013	19.6 M	93.18	0.548	210.7 k
A5N46	1M	laboratory	2019	38.4 M	99.43	5.372	386.2 k
A5N46	1M	laboratory	2020	44.9 M	99.35	5.725	451.9 k
A5N46	1M	vital-signs	2013	7.6 M	64.79	1.780	117.3 k
A5N46	1M	vital-signs	2019	14.3 M	66.91	0.802	214.2 k
A5N46	1M	vital-signs	2020	15.8 M	66.49	0.988	237.5 k

Code and Patient Search

This section evaluates the performance of FHIR Search for selecting Observation resources with a specific code for 1000 patients.

Script

The script code-patient-search.sh is used.

Counting

System	Dataset	Code	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	8310-5	943	0.03	0.002	35.7 k
LEA47	1M	55758-7	28 k	0.10	0.003	288.1 k
LEA47	1M	72514-3	113 k	0.24	0.002	478.7 k
LEA58	1M	8310-5	943	0.03	0.002	34.4 k
LEA58	1M	55758-7	28 k	0.10	0.001	275.4 k
LEA58	1M	72514-3	113 k	0.29	0.010	392.0 k
LEA79	1M	8310-5	943	0.01	0.001	78.7 k
LEA79	1M	55758-7	28 k	0.03	0.004	1.0 M
LEA79	1M	72514-3	113 k	0.06	0.006	1.9 M
A5N46	1M	8310-5	944	0.01	0.001	99.5 k
A5N46	1M	55758-7	28 k	0.02	0.004	1.5 M
A5N46	1M	72514-3	113 k	0.04	0.007	2.9 M

¹ resources per second

Downloading Resources

System	Dataset	Code	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	8310-5	943	0.07	0.000	13.5 k
LEA47	1M	55758-7	28 k	0.63	0.014	44.6 k
LEA47	1M	72514-3	113 k	2.33	0.024	48.5 k
LEA58	1M	8310-5	943	0.06	0.005	14.9 k
LEA58	1M	55758-7	28 k	0.68	0.005	41.6 k
LEA58	1M	72514-3	113 k	2.16	0.065	52.4 k
LEA79	1M	8310-5	943	0.03	0.007	28.0 k
LEA79	1M	55758-7	28 k	0.15	0.005	191.6 k
LEA79	1M	72514-3	113 k	0.49	0.016	231.6 k
A5N46	1M	8310-5	944	0.03	0.002	33.7 k
A5N46	1M	55758-7	28 k	0.15	0.012	182.5 k
A5N46	1M	72514-3	113 k	0.46	0.012	245.4 k

¹ resources per second

Downloading Resources with Subsetting

If only a subset of a resource's information is needed, the _elements search parameter can be used to retrieve only specific properties. In this case, _elements=subject was used.

System	Dataset	Code	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	8310-5	943	0.04	0.000	23.6 k
LEA47	1M	55758-7	28 k	0.48	0.012	59.0 k
LEA47	1M	72514-3	113 k	1.63	0.000	69.4 k
LEA58	1M	8310-5	943	0.04	0.000	23.6 k
LEA58	1M	55758-7	28 k	0.48	0.016	58.6 k
LEA58	1M	72514-3	113 k	1.53	0.043	73.9 k
LEA79	1M	8310-5	943	0.02	0.001	47.9 k
LEA79	1M	55758-7	28 k	0.13	0.001	214.5 k
LEA79	1M	72514-3	113 k	0.41	0.007	272.7 k
A5N46	1M	8310-5	944	0.02	0.003	55.5 k
A5N46	1M	55758-7	28 k	0.12	0.003	227.7 k
A5N46	1M	72514-3	113 k	0.38	0.006	298.3 k

¹ resources per second

Multiple Codes and Patient Search

This section evaluates the performance of FHIR Search for selecting Observation and Condition resources with multiple codes for 1000 patients.

The following codes were used:

• 10 LOINC codes from observation-codes-10.txt
• 100 LOINC codes from observation-codes-100.txt
• 1k SNOMED CT codes from condition-codes-disease-1k.txt
• 10k SNOMED CT codes from condition-codes-disease-10k.txt

Script

The script multiple-codes-patient-search.sh is used.

Counting

System	Dataset	Codes	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	10	121 k	0.30	0.004	408.8 k
LEA47	1M	100	1.1 M	2.33	0.005	470.1 k
LEA47	1M	1k	247	2.80	0.006	88
LEA47	1M	10k	1 k	39.80	0.146	32
LEA58	1M	10	121 k	0.31	0.011	396.5 k
LEA58	1M	100	1.1 M	2.47	0.022	443.8 k
LEA58	1M	1k	247	2.89	0.011	85
LEA58	1M	10k	1 k	41.13	0.439	31
LEA79	1M	10	121 k	0.10	0.013	1.3 M
LEA79	1M	100	109 k	0.29	0.003	372.3 k
LEA79	1M	1k	247	1.74	0.013	142
LEA79	1M	10k	1 k	28.14	0.244	45
A5N46	1M	10	121 k	0.07	0.008	1.7 M
A5N46	1M	100	109 k	0.21	0.003	508.3 k
A5N46	1M	1k	247	1.39	0.005	178
A5N46	1M	10k	1 k	22.20	0.093	57

¹ resources per second

Downloading Resources

System	Dataset	Codes	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	10	121 k	2.44	0.054	49.7 k
LEA47	1M	100	1.1 M	21.70	0.310	50.5 k
LEA47	1M	1k	247	2.81	0.016	88
LEA47	1M	10k	1 k	40.48	0.237	31
LEA58	1M	10	121 k	2.30	0.106	52.7 k
LEA58	1M	100	1.1 M	20.19	0.281	54.3 k
LEA58	1M	1k	247	2.88	0.042	86
LEA58	1M	10k	1 k	40.97	0.233	31
LEA79	1M	10	121 k	0.55	0.017	219.7 k
LEA79	1M	100	109 k	0.89	0.020	122.6 k
LEA79	1M	1k	247	1.73	0.011	143
LEA79	1M	10k	1 k	28.06	0.068	45
A5N46	1M	10	121 k	0.51	0.014	240.0 k
A5N46	1M	100	109 k	0.83	0.017	131.7 k
A5N46	1M	1k	247	1.39	0.005	177
A5N46	1M	10k	1 k	22.20	0.031	57

¹ resources per second

Code, Date, and Patient Search

This section evaluates the performance of FHIR Search for selecting Observation resources with a specific code, a specific date, and for 1000 patients.

Script

The script code-date-patient-search.sh is used.

Counting

System	Dataset	Code	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	8310-5	246	0.04	0.006	6.9 k
LEA47	1M	55758-7	3 k	0.15	0.001	18.2 k
LEA47	1M	72514-3	12 k	0.43	0.009	27.9 k
LEA79	1M	8310-5	246	0.02	0.002	15.2 k
LEA79	1M	55758-7	3 k	0.09	0.003	30.5 k
LEA79	1M	72514-3	12 k	0.27	0.004	44.6 k
A5N46	1M	8310-5	246	0.01	0.001	17.0 k
A5N46	1M	55758-7	3 k	0.08	0.001	35.9 k
A5N46	1M	72514-3	12 k	0.21	0.003	57.3 k

¹ resources per second

Downloading Resources

System	Dataset	Code	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	8310-5	246	0.04	0.000	6.2 k
LEA47	1M	55758-7	3 k	0.24	0.005	11.6 k
LEA47	1M	72514-3	12 k	0.65	0.017	18.3 k
LEA79	1M	8310-5	246	0.03	0.001	9.5 k
LEA79	1M	55758-7	3 k	0.12	0.011	22.7 k
LEA79	1M	72514-3	12 k	0.35	0.010	33.8 k
A5N46	1M	8310-5	246	0.02	0.001	10.2 k
A5N46	1M	55758-7	3 k	0.12	0.007	23.6 k
A5N46	1M	72514-3	12 k	0.29	0.004	40.9 k

¹ resources per second

Downloading Resources with Subsetting

If only a subset of a resource's information is needed, the _elements search parameter can be used to retrieve only specific properties. In this case, _elements=subject was used.

System	Dataset	Code	# Hits	Time (s)	StdDev	Res/s ¹
LEA47	1M	8310-5	246	0.03	0.000	8.2 k
LEA47	1M	55758-7	3 k	0.19	0.005	14.6 k
LEA47	1M	72514-3	12 k	0.61	0.016	19.6 k
LEA79	1M	8310-5	246	0.02	0.000	11.9 k
LEA79	1M	55758-7	3 k	0.11	0.001	26.5 k
LEA79	1M	72514-3	12 k	0.34	0.004	35.5 k
A5N46	1M	8310-5	246	0.02	0.000	16.0 k
A5N46	1M	55758-7	3 k	0.11	0.002	26.8 k
A5N46	1M	72514-3	12 k	0.28	0.004	42.6 k

¹ resources per second

Simple Date Search

This section evaluates the performance of FHIR Search for selecting Observation resources with a specific effective year.

Script

The script simple-date-search.sh is used.

Counting

System	Dataset	Year	# Hits	Time (s)	StdDev	Res/s ¹
LEA36	100k	2013	3.1 M	2.12	0.023	0.67
LEA36	100k	2019	6.0 M	3.81	0.062	0.63
LEA47	100k	2013	3.1 M	2.13	0.068	0.68
LEA47	100k	2019	6.0 M	4.17	0.175	0.69
LEA58	100k	2013	3.1 M	2.22	0.071	0.71
LEA58	100k	2019	6.0 M	4.19	0.056	0.70
LEA47	1M	2013	31.1 M	108.65	0.558	286.0 k
LEA47	1M	2019	60.1 M	209.27	1.670	287.0 k
LEA58	1M	2013	31.1 M	107.81	1.260	288.2 k
LEA58	1M	2019	60.1 M	210.81	0.364	284.9 k
LEA79	1M	2013	31.1 M	44.65	0.247	695.8 k
LEA79	1M	2019	60.1 M	160.97	0.698	373.1 k
A5N46	1M	2013	31.1 M	61.20	0.176	507.8 k
A5N46	1M	2019	60.1 M	120.82	0.064	497.1 k

¹ resources per second

Downloading Resources

System	Dataset	Year	# Hits	Time (s)	StdDev	Res/s ¹
LEA36	100k	2013	3.1 M	52.42	0.545	16.77
LEA36	100k	2019	6.0 M	129.84	5.393	21.71
LEA47	100k	2013	3.1 M	53.41	0.377	17.08
LEA47	100k	2019	6.0 M	107.15	0.116	17.92
LEA58	100k	2013	3.1 M	53.07	0.090	16.98
LEA58	100k	2019	6.0 M	100.73	0.473	16.84
LEA47	1M	2013	31.1 M	819.06	1.965	37.9 k
LEA47	1M	2019	60.1 M	1634.48	16.647	36.7 k
LEA58	1M	2013	31.1 M	596.05	18.812	52.1 k
LEA58	1M	2019	60.1 M	1451.13	77.328	41.4 k
LEA79	1M	2013	31.1 M	126.87	0.200	244.9 k
LEA79	1M	2019	60.1 M	427.60	0.261	140.4 k
A5N46	1M	2013	31.1 M	158.20	0.066	196.4 k
A5N46	1M	2019	60.1 M	307.03	0.419	195.6 k

¹ resources per second

Downloading Resources with Subsetting

If only a subset of a resource's information is needed, the _elements search parameter can be used to retrieve only specific properties. In this case, _elements=subject was used.

System	Dataset	Year	# Hits	Time (s)	StdDev	Res/s ¹
LEA36	100k	2013	3.1 M	32.07	0.278	10.26
LEA36	100k	2019	6.0 M	79.92	4.179	13.36
LEA47	100k	2013	3.1 M	31.99	0.061	10.23
LEA47	100k	2019	6.0 M	66.33	0.045	11.09
LEA58	100k	2013	3.1 M	32.43	0.340	10.37
LEA58	100k	2019	6.0 M	62.14	0.488	10.39
LEA47	1M	2013	31.1 M	627.50	9.911	49.5 k
LEA47	1M	2019	60.1 M	1282.05	4.997	46.8 k
LEA58	1M	2013	31.1 M	439.48	1.237	70.7 k
LEA58	1M	2019	60.1 M	1238.84	3.080	48.5 k
LEA79	1M	2013	31.1 M	86.79	0.171	358.0 k
LEA79	1M	2019	60.1 M	422.09	0.536	142.3 k
A5N46	1M	2013	31.1 M	154.09	0.066	201.6 k
A5N46	1M	2019	60.1 M	298.95	0.234	200.9 k

¹ resources per second

Patient Date Search

This section evaluates the performance of FHIR Search for selecting Patient resources with a specific birth date.

Script

The script patient-date-search.sh is used.

Counting

System	Dataset	Date	# Hits	Time (s)	StdDev	Res/s ¹
LEA58	1M	gt1998-04-10	227 k	1.08	0.015	210.8 k
LEA58	1M	ge1998-04-10	227 k	1.16	0.023	196.1 k
LEA58	1M	lt1998-04-10	773 k	3.22	0.064	240.1 k
LEA58	1M	le1998-04-10	773 k	3.24	0.071	238.5 k
LEA79	1M	gt1998-04-10	227 k	0.33	0.012	682.7 k
LEA79	1M	ge1998-04-10	227 k	0.35	0.026	641.4 k
LEA79	1M	lt1998-04-10	773 k	0.97	0.024	794.7 k
LEA79	1M	le1998-04-10	773 k	0.95	0.040	812.3 k
A5N46	1M	gt1998-04-10	227 k	0.24	0.006	943.4 k
A5N46	1M	ge1998-04-10	227 k	0.24	0.017	949.7 k
A5N46	1M	lt1998-04-10	773 k	0.64	0.023	1.2 M
A5N46	1M	le1998-04-10	773 k	0.65	0.019	1.2 M

¹ resources per second

Downloading Resources

System	Dataset	Date	# Hits	Time (s)	StdDev	Res/s ¹
LEA58	1M	gt1998-04-10	227 k	9.87	0.009	23.0 k
LEA58	1M	ge1998-04-10	227 k	9.86	0.052	23.0 k
LEA58	1M	lt1998-04-10	773 k	36.55	0.178	21.1 k
LEA58	1M	le1998-04-10	773 k	35.91	0.274	21.5 k
LEA79	1M	gt1998-04-10	227 k	1.94	0.042	117.0 k
LEA79	1M	ge1998-04-10	227 k	1.93	0.021	117.9 k
LEA79	1M	lt1998-04-10	773 k	6.41	0.020	120.5 k
LEA79	1M	le1998-04-10	773 k	6.62	0.023	116.7 k
A5N46	1M	gt1998-04-10	227 k	1.63	0.027	139.9 k
A5N46	1M	ge1998-04-10	227 k	1.65	0.020	137.8 k
A5N46	1M	lt1998-04-10	773 k	5.50	0.019	140.5 k
A5N46	1M	le1998-04-10	773 k	5.40	0.010	143.2 k

¹ resources per second

Downloading Resources with Subsetting

If only a subset of a resource's information is needed, the _elements search parameter can be used to retrieve only specific properties. In this case, _elements=id was used.

System	Dataset	Date	# Hits	Time (s)	StdDev	Res/s ¹
LEA58	1M	gt1998-04-10	227 k	4.29	0.057	53.0 k
LEA58	1M	ge1998-04-10	227 k	4.18	0.082	54.4 k
LEA58	1M	lt1998-04-10	773 k	13.73	0.102	56.2 k
LEA58	1M	le1998-04-10	773 k	13.83	0.067	55.8 k
LEA79	1M	gt1998-04-10	227 k	0.92	0.009	248.1 k
LEA79	1M	ge1998-04-10	227 k	0.91	0.013	251.2 k
LEA79	1M	lt1998-04-10	773 k	2.55	0.101	302.7 k
LEA79	1M	le1998-04-10	773 k	2.63	0.069	293.4 k
A5N46	1M	gt1998-04-10	227 k	0.89	0.002	256.2 k
A5N46	1M	ge1998-04-10	227 k	0.87	0.002	260.0 k
A5N46	1M	lt1998-04-10	773 k	2.60	0.027	297.3 k
A5N46	1M	le1998-04-10	773 k	2.65	0.021	291.5 k

¹ resources per second

Used Dataset

The dataset was generated with Synthea v3.1.1. The resource generation process is described here.

Controlling and Monitoring the Caches

Blaze uses two caches to speed up FHIR Search. The resource cache holds the contents of resources and the resource handle cache holds the resource handles a search looks up for each of its hits.

The size of the resource cache can be set with the DB_RESOURCE_CACHE_SIZE_RATIO environment variable and the size of the resource handle cache with the DB_RESOURCE_HANDLE_CACHE_SIZE_RATIO environment variable. Both specify the ratio of JVM heap size that is allocated to the cache. Together, both caches take at most 0.8 of the JVM heap.

Monitoring

Blaze exposes a Prometheus monitoring endpoint on port 8081 by default. The ideal setup is to connect a Prometheus instance to it and use Grafana for visualization. However, for simple, ad-hoc queries about the current state of Blaze, curl and grep are sufficient.

Java Heap Size

The bytes currently used by the various generations of the Java heap are provided by the jvm_memory_pool_bytes_used metric. Of these, the G1 Old Gen is the most important, as cached resources are stored there. The following command fetches all metrics and filters for the relevant line:

curl -s http://localhost:8081/metrics | grep jvm_memory_pool_bytes_used | grep Old
jvm_memory_pool_bytes_used{pool="G1 Old Gen",} 8.325004288E9

Here, the value 8.325004288E9 is in bytes, and E9 indicates gigabytes. This shows 8.3 GB of the old generation are in use, which constitutes most of the total heap size. If Blaze were configured with a maximum heap size of 10 GB, this usage would be within a healthy upper limit.

Resource Cache

Cache metrics are available under keys starting with blaze_cache. Among these is the resource-cache. These metrics can be difficult to interpret without a Prometheus/Grafana infrastructure because they are counters that accumulate since Blaze was started. Therefore, after a long runtime, it is necessary to calculate relative differences. However, shortly after Blaze starts, the absolute numbers are very useful on their own.

curl -s http://localhost:8081/metrics | grep blaze_cache | grep resource-cache
blaze_cache_hits_total{name="resource-cache",} 869000.0
blaze_cache_misses_total{name="resource-cache",} 13214.0
blaze_cache_load_successes_total{name="resource-cache",} 13214.0
blaze_cache_load_failures_total{name="resource-cache",} 0.0
blaze_cache_load_seconds_total{name="resource-cache",} 234.418864426
blaze_cache_evictions_total{name="resource-cache",} 0.0
blaze_cache_estimated_size{name="resource-cache",} 13214.0

The number of evictions is a key metric here. As long as the number of evictions is zero, the resource cache has not overflowed. FHIR Search inserts only the resources of the first page into the resource cache. The following pages use the resources already in the cache, but don't insert the ones they have to load, so that downloading a large search result doesn't evict the resources other queries need. The pages of the history interactions behave the same. CQL queries, however, insert every resource they load. So the goal should be for most CQL queries to fit within the resource cache. If the number of resources in a single CQL query exceeds the cache size, the cache will be evicted and refilled during that query. This is especially problematic for repeated queries, as resources needed at the beginning of the query will no longer be in the cache after it is refilled. Therefore, a cache size smaller than what is required for a single CQL query offers no performance benefit for it.

Resource Handle Cache

The metrics of the resource handle cache have the name resource-handle-cache:

curl -s http://localhost:8081/metrics | grep blaze_cache | grep resource-handle-cache
blaze_cache_hits_total{name="resource-handle-cache",} 2.5873046E7
blaze_cache_misses_total{name="resource-handle-cache",} 2421337.0
blaze_cache_load_successes_total{name="resource-handle-cache",} 0.0
blaze_cache_load_failures_total{name="resource-handle-cache",} 0.0
blaze_cache_load_seconds_total{name="resource-handle-cache",} 0.0
blaze_cache_evictions_total{name="resource-handle-cache",} 0.0
blaze_cache_estimated_size{name="resource-handle-cache",} 1176455.0

Every lookup of a resource handle counts as either a hit or a miss. The load metrics stay at zero, because the cache doesn't load handles itself. Instead, a handle is inserted only on its second miss, so that a single scan over more resources than the cache can hold doesn't evict the handles that other queries need. The Resource Handle Cache section of the database implementation describes the details.

The estimated size is the number of handles in the cache. A handle takes about 220 bytes with resource ids of 16 chars, or about 280 bytes with a JVM heap size of 32 GiB or more. So with the default ratio of 0.1 and a JVM heap size of 24 GiB, the cache holds about 12 million handles.

As with the resource cache, evictions show that the cache is full. Unlike the resource cache, a full resource handle cache still helps, because it keeps the handles that are looked up repeatedly. If the cache evicts handles and the number of misses grows as fast as the number of hits, the handles that the queries need repeatedly don't fit into the cache. In that case, a higher ratio helps, as long as the JVM heap has room for it.
